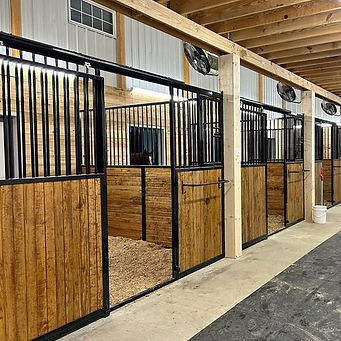

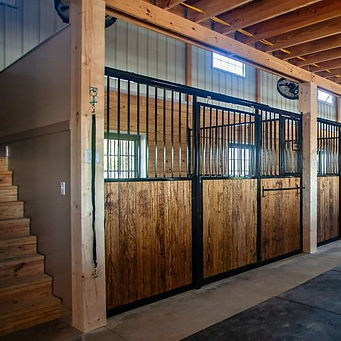

Basic Horse Stalls

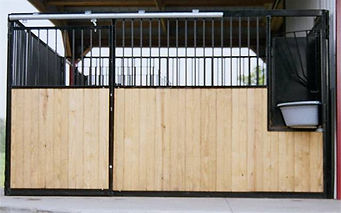

Our Basic Horse Stall Fronts and Dividers with steel frames come with all the wood included and with grill sections in door and to the side of the door, 8 foot sliding door track and guide assembly, a 52″ x 88″ sliding horse stall door which can be installed on either side of the stall your choice. Our basic stall fronts and dividers measure 8 foot wide to 20 foot wide and 7′ tall or 8′ tall. Stall dividers come standard with 4′ of wood and 3′ of steel grill on top but for the same price can be a solid all wood divider instead.

OUR HORSE STALLS ARE BUILT TO GIVE YOU YEARS OF DAILY TROUBLE FREE USE!

Steel Grills
Our horse stall grills are 7/8″ outside diameter schedule 40 11 gauge steel with a wall thickness of .109″. “We believe our stall bars are the heaviest bars used in the horse stall manufacturing industry”. Our bars are welded in place 4 inches on center giving a space of approximately 3.25 inches between the bars. The steel tubing in our horse stalls and grills will not turn or rattle. These bars do not give when pushed on.

Wood
Our stalls come with the wood included. The wood we use in our stalls is a number 1 grade 8 inch tongue and groove v groove southern yellow pine. The wood is clear and free of knots and is not treated or finished, it will be up to you to stain or finish the wood after you have installed the stalls in your barn. The wood can be installed either vertically or horizontally within the steel stall frame your choice just let us know at the time you place your order. The wood on our stalls comes up 4 feet high unless you order all wood dividers then it will go all the way up the divider.

Powder Coated Steel Frames
We offer powder coated stall frames and grills. Powder coating leaves a much harder durable finish and will extend the life of your stalls finish. Black is the standard color but we can powder coat pretty much to the color you choose. Metal on all of our stalls is sand blasted and cleaned prior to powder coating.

Our Basic Horse Stalls Can Be Either Conventional, Free Standing, Or Modular!

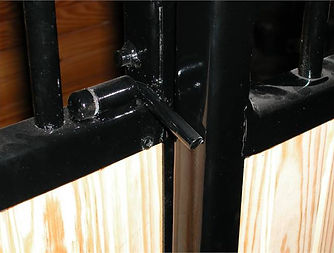

If your barn does not have posts not a problem. Our fronts and dividers can attach to each other with heavy duty 1 inch diameter by 7″ long solid steel pins. Our stalls can easily be free standing or modular stalls depending on your barn situation.
At the time you place your order we can discuss how your stalls will attach to your barn walls or posts or to no posts at all.

Custom Fitting Stall Fronts and Dividers
The sizes priced below are even sizes however 90% of the stalls we make are made to fit customer needs. If you need a 9’8″ stall front instead of a 10′ front we can make it for you. We do not charge extra to custom make stall fronts and dividers however we do charge to the next standard size. Whatever your needs are we can make the stalls to fit them even if you are installing stalls in an old barn and you need the bottom for the stall front to be 10′ 2″ and the top to be 10′ 1″ etc. This is why we do not stock stalls and all orders are made to order.

Below Are Standard Sizes But We Will Make Stalls To The Exact Size You Need!

Basic 7′ Tall Stall Fronts

8′ Wide – $835
10′ Wide – $885
12′ Wide- $935
14′ Wide – $990
16′ Wide – $1040
20′ Wide – $1140

Basic 7′ Tall Stall Dividers
( Stall Grill and Wood or All Wood Dividers Are Same Price )

8′ Wide – $535
10′ Wide – $680
12′ Wide – $730
14′ Wide – $780
16′ Wide – $835
20′ Wide – $935

Basic 8′ Tall Stall Fronts

8′ Wide – $965
10′ Wide – $1045
12′ Wide – $1130
14′ Wide – $1215
16′ Wide – $1295
20′ Wide – $1425

Basic 8′ Tall Stall Dividers
( Stall Grill and Wood or All Wood Dividers Are Same Price )

8′ Wide – $665
10′ Wide – $785
12′ Wide – $865
14′ Wide – $1000
16′ Wide – $1090
20′ Wide – $1180

Options Available For These Stalls

  • Swing Out Hay and Grain Feeder

  • Swing Out Bucket Rack

  • Steel Horse Stall Corner Grain Feeder

  • Swing Out Corner Grain Feeder

  • Thru The Wall Grain Feeder

  • 10″ x 10″ Feed Opening

  • 20″ x 40″ Grilled Swing Open Feed Door

  • Arched Drop Down In The Stall Door

Horse Stall Installation Service

If you need us to professionally install your new horse stalls we can do that. Our charge for doing installations depends on location and the number and type of stalls you need installed. Installation also requires us to deliver your stalls to your location.

If you want a quote on having your stalls installed send us an email with your name, delivery address, product name, sizes and quantities of the stalls you want to have installed and we will send you back a quote via email.

Horse Stall Delivery

​We deliver our horse stalls if requested all across the continental United States. Our prices for delivery are fair and we use our own trucks. Your horse stalls will be professionally loaded and packed for delivery. You will be required to unload the horse stalls on your end unless we are installing the stalls in which case we will also unload the stalls.

If you want a quote on having your stalls delivered send us an email with your name, delivery address, product name, sizes and quantities of the stalls you want to have delivered and we will send you back a quote via email.

Custom Made Horse Stalls

​We manufacture custom made horse stalls to match your drawings or pictures. We make them to fit your horse stall project. We can make just about anything!

If you want a quote on your stalls project send us an email or fax with a drawing or picture on the stalls you would like to have a quote on along with your name, and quantities of the stalls you want and we will send you back a quote via email.
