HORSE STALL ACCESSORIES
HORSE STALL FEEDERS
Swing Out Hay and Grain Feeders

This is a 20″ x 40″ swing out horse stall hay and grain feeder. It can be installed in any front or stall grill that we manufacture. It can also be installed by you in any horse stall front with wood. The rough opening size needed in your wood front would be 23 1/4″ x 50 1/4″. These are made of 12 gauge sheet steel that is powder coated black giving a long lasting durable non-toxic finish.
Item Number - 1300

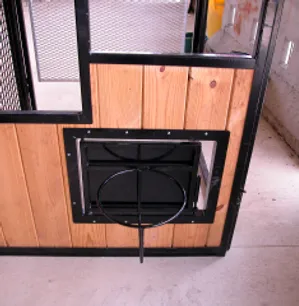

Swing Out Horse Stall Bucket Rack

This is a swing out horse stall bucket rack. It can be installed in any front or stall grill that we manufacture. It can also be installed by you in any horse stall front with wood. The rough opening size needed in your wood front would be 17 x 23 1/4″. These are made of 12 gauge sheet steel this is powder coated black giving a long lasting durable non-toxic finish. This will hold any standard 3 to 5 gallon bucket.
Item Number - 1301

Horse Stall Feeder
Horse Stall Feeder

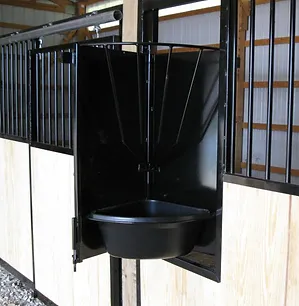

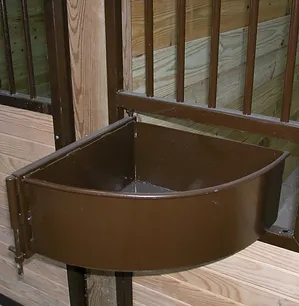

Heavy Duty Swing Out Steel Horse Stall Corner Grain Feeder

Heavy duty steel swing out horse stall corner grain feeders. These feeders hold 20 quarts of feed and are 25 pounds each and made of heavy duty 12 gauge plate steel. Pull the spring pin and pull the feeder out of the stall. Fill with grain and push back into the stall. They are powder coated black with a long lasting non-toxic durable finish.

We can install these feeders in any of the stalls we manufacture or you can install them in your own stalls that have wood in the front. Just cut your rough opening slide the feeder in and secure with wood screws.
Item Number - 1302

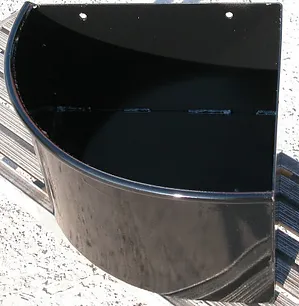

Heavy Duty Steel Horse Stall Corner Grain Feeder

YOUR HORSE WILL NOT TEAR THESE UP!



Heavy duty steel horse stall corner grain feeders. These feeders hold 20 quarts of feed and are 16 pounds each and made of heavy duty 12-gauge plate steel. They are 8 inches deep and the straight edges are 14 inches long and from corner to corner across the curved portion is 20 inches. They come powder coated black with a long lasting non-toxic durable finish.
Item Number - 1303

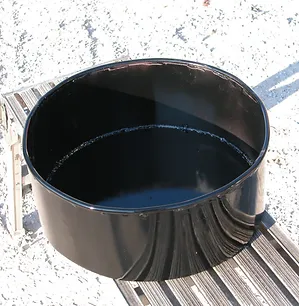

Heavy Duty 16″ Diameter Round Pan Feeder

12-gauge steel 16″ in diameter and 8″ deep. Heavy duty black powder coated.
Item Number - 1304

4' and 5' Wooden Horse Stall Hay and Grain Feeders

36" High by 18" deep and either 4' or 5' long. Grain feeders is 12" wide.
4' Item Number 1305 - 5' Item Number 1306

Horse Stall Feeder
Horse Stall Feeder
Horse Stall Feeder
Wooden Horse Stall Hay and Grain Manger
HORSE STALL DOORS AND HARDWARE

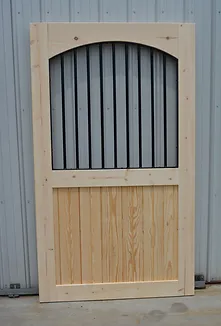

Arched Pine Door

This door is 51″ x 88″. Door track and hardware sold separately below.
Item Number - 1310

Steel Framed Arched Door

This door is 51″ x 88″ and shown with optional drop-down window. Door track and hardware sold separately below.

Item Number - 1311

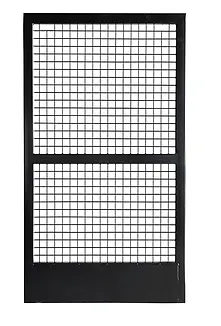

Steel Mesh Stall Door

This door is 51″ x 88″ Door track and hardware sold separately below.

Item Number - 1312

SSD Stall Door

This door is 51″ x 88″. Door track and hardware sold separately below.

Item Number - 1314

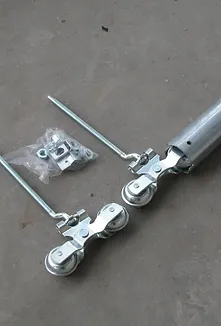

Set of Two Sliding Door Trollies
Item Number - 1315

8' Galvanized Door Track and Guide Kit

Includes 8' track, two trollies, and two guide and stops
Galvanized - Item Number 1320
Painted Black - Item Number 1321

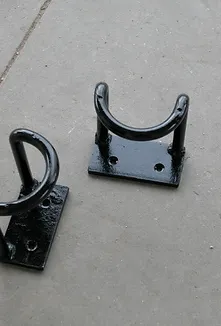

Set of Two Door Stops and Guides
Item Number
- 1325
Arched Pine Horse Stall Door
Steel Framed Arched Horse Stall Door
Steel Mesh Horse Stall Door
SSD Horse Stall Door
Sliding Horse Stall Door Trollies
Horse Stall Door Stop and Guide

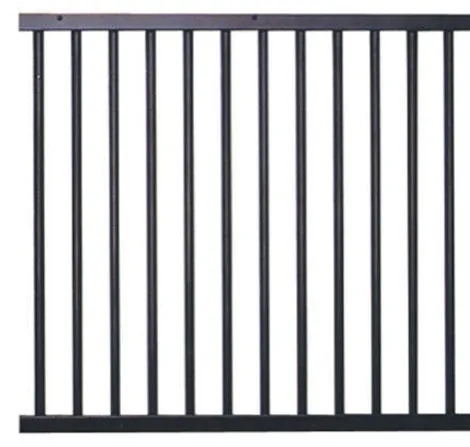

HORSE STALL STEEL GRILLS

Sizes 3' Grill - 2', 4', 6', 8', 10', 12', 14', 16' Item Number 1328
Sizes 4' Grill - 2', 4', 6', 8', 10', 12', 14', 16' Item Number 1329

Our horse stall grills are 7/8″ outside diameter schedule 40 11 gauge steel with a wall thickness of .109″. “We believe our stall bars are the heaviest bars used in the stall manufacturing industry”. Our bars are welded in place 4 inches on center giving a space of approximately 3.25 inches between the bars. The steel tubing in our horse stalls and grills will not turn or rattle. These bars do not give when pushed on. Our grills have 1 1/2″ x 1 1/2″ U-Channels on the top and bottom and will sit down over 2″ dimensional lumber.



Powder Coated Steel

 We offer powder coated stall grills. Powder coating leaves a much harder durable finish and will extend the life of your stalls finish. Black is the standard color but we can powder coat pretty much to the color you choose. Metal on all of our stall grills is sand blasted and cleaned prior to powder coating.

We can custom make window grills with flanges to fit any rough size openings for your windows, or stalls just email us for a quote

Horse Stall Steel Grill

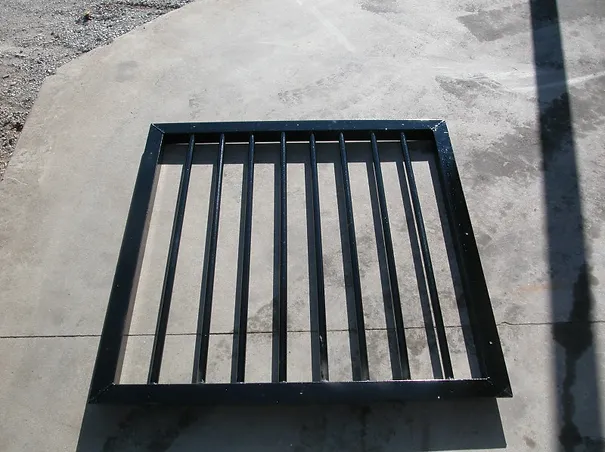

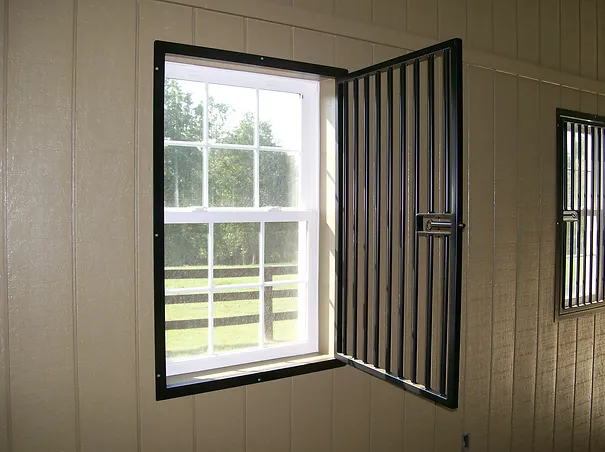

HORSE STALL STEEL GRILL WINDOW GUARDS
Styles -
Two - Stationary and Swing Out Window Guards
Sizes Available - 24" x 36", 36" x 36", 36" x 48", 48" x 48", Custom Made To Fit
Stationary Item Number 1330 - Swing Out Item Number 1331


Our horse stall grilled window guards are 7/8″ outside diameter schedule 40 11 gauge steel with a wall thickness of .109″. “We believe our stall bars are the heaviest bars used in the stall manufacturing industry”. Our bars are welded in place 4 inches on center giving a space of approximately 3.25 inches between the bars. The steel tubing in our horse stalls and grills will not turn or rattle. These bars do not give when pushed on. Our window guards all come with 1 1/2″ angle around the outside to allow for easy installation into your rough opening.



Powder Coated Steel

We offer powder coated window guards. Powder coating leaves a much harder durable finish and will extend the life of your stalls finish. Black is the standard color but we can powder coat pretty much to the color you choose. Metal on all of our stall grills is sand blasted and cleaned prior to powder coating.

​​

We can custom make grilled window guards to fit your needs just ask for a quote.

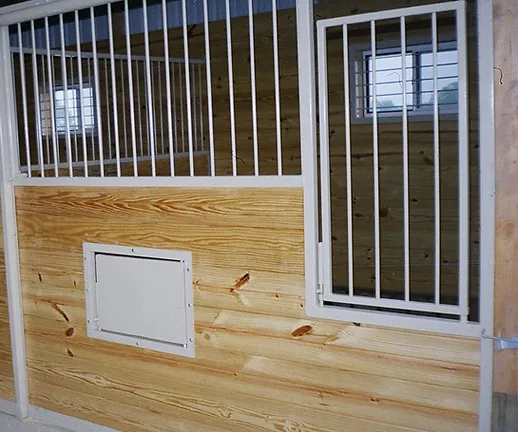

HORSE STALL FEED OPENINGS

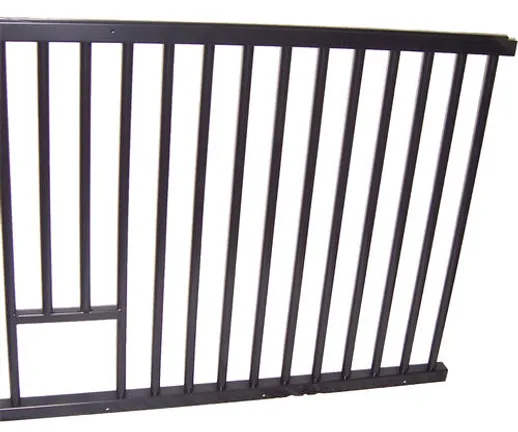

10 ” x 10″ Feed Opening

Manufactured into the corner of your horse stall grill fronts at the time we make your stalls or stall grills.
Item Number 1334



20″ x 36″ Swing Out Grilled Window Feed Doors

Manufactured into the corner of your horse stall grill fronts at the time we make your stalls or stall grills.
Item Number 1335

HORSE STALL DOOR DROP DOWNS


The steel stall grills in our straight and arched stall drop downs are 7/8″ outside diameter schedule 40 11 gauge steel with a wall thickness of .109″. “We believe our stall bars are the heaviest bars used in the stall manufacturing industry”. Our bars are welded in place 4 inches on center giving a space of approximately 3.25 inches between the bars. The steel tubing in our horse stalls and grills will not turn or rattle. These bars do not give when pushed on.



Powder Coated Steel

We offer powder coated stall grills and drop downs. Powder coating leaves a much harder durable finish and will extend the life of your stalls finish. Black is the standard color but we can powder coat pretty much to the color you choose. Metal on all of our stall grills is sand blasted and cleaned prior to powder coating.

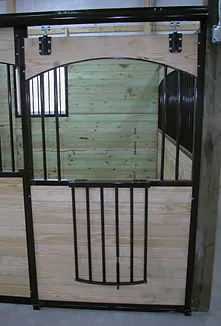

Straight Drop Downs Item Number 1340

Arched Drop Downs Item Number 1341

Swing Out Steel Grill Window Guard
Stationary Steel Grill Window Guard
20" x 36" Swing Out Grilled Window
10" x 10" Feed Opening
Straight Horse Stall Drop Down
Arched Horse Stall Door Drop Down
