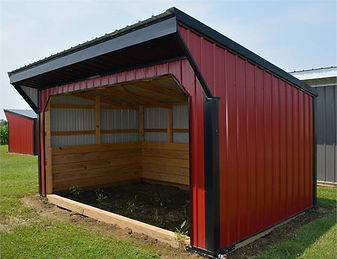

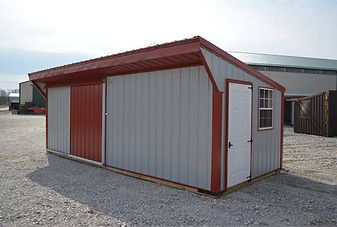

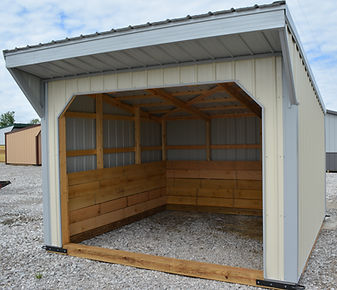

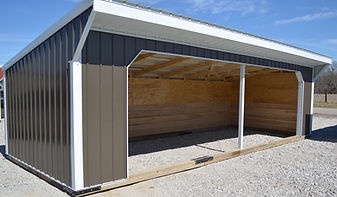

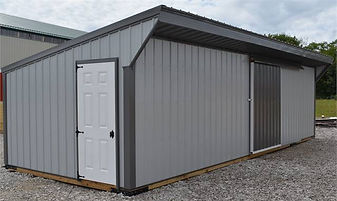

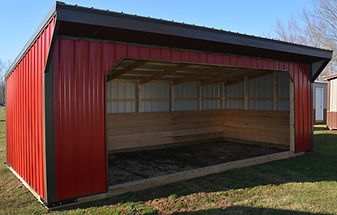

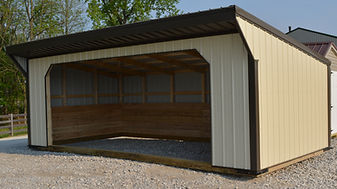

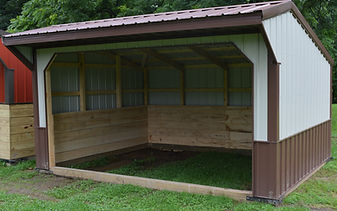

Metal Horse Run In Sheds

Features on Metal Horse Run In Sheds

• Shed Style Roof Line or Peaked roof line

• 2′ overhang roof in front

• Steel tow hooks on every corner

• 40 year 29 gauge metal siding and roofing in your choice of 22 colors see color chart with pictures at right.

• 2″ x 4″ double wall studs 48″ on center

• 2″ x 10″ headers above door openings up to 20′ wide and 2″ x 12″ headers above the door openings

• Fully open front – standard 1′ of metal on the front corners on sheds up to 20′ and 3′ of metal on the front corners of sheds over 20′

• 2″ x 6″ roof rafters 48″ on center

• Treated 6″ x 6″ runners all the way around the bottom of our shelters

• 1″ x 8″ rough cut ash or oak 40″ high kick boards on top of all of the interior walls

• Color matched screws

• Width: Outside edge of front runner to out side edge of rear runner 10′,12′, or 14′.

• Length: Outside edge of end runner to outside edge of opposite end runner 12′ to 40′.

• Height: From ground to metal roof on front 113 inches.

• Height: From bottom of front runner to bottom of door header 107 inches.

• Height from ground to metal on roof in back wall is 86 inches.



10′ Wide Standard Sizes on Metal Horse Run In Sheds Peaked Roof and Shed Roof

• 10 x 12

• 10 x 16

• 10 x 20

• 10 x 24

• 10 x 28

• 10 x 30

• 10 x 32

• 10 x 36



12′ Wide Standard Sizes on Metal Horse Run In Sheds Peaked Roof and Shed Roof

• 12 x 12

• 12 x 16

• 12 x 20

• 12 x 24

• 12 x 28

• 12 x 30

• 12 x 32

• 12 x 36

• 12 x 40

​

14′ Wide Standard Sizes on Metal Horse Run In Sheds Peaked Roof and Shed Roof

• 14 x 12

• 14x 16

• 14x 20

• 14 x 24

• 14 x 28

• 14 x 30

• 14 x 32

• 14 x 36

• 14 x 40

​

Options on Our Metal Horse Run In Sheds

• Anchors – 4 30″ anchors chained to the steel tow hooks installed at delivery

• 4′ x 7′ Dutch doors instead of slider doors

• 9′ x 7′ metal slider door

• 6′ x 7′ metal slider door

• 4′ x 7′ metal slider door

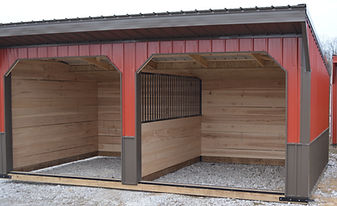

• 10′ wood and steel grill stall divider

• 12′ wood and steel grill stall divider

• 10′ x 64″ wooden stall dividers

• 12′ x 64″ wooden stall dividers

• 30″ x 36 ” window non insulated aluminum

• steel grill window guard for 30″ x 36″ window

• 18″ x 27″ window non insulated aluminum

• 18″ x 36″ drop down ventilation window

• 36″ x 10′ drop down ventilation window

• 12″ taller all the way around

• Sky Lite in roof

• Wooden Floor

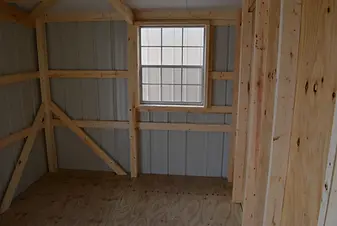

Tack Rooms

• 6′ x 10′ wide tack room

• 6′ x 12′ wide tack room

• 6' x 14' wide tack room

• 8′ x 10′ wide tack room

• 8′ x 12′ wide tack room

• 8' x 14' wide tack room

Lean Too’s

• 7′ x 16′ lean too

• 7′ x 20′ lean too

• 7′ x 24′ lean too

• 7′ x 28′ lean too

• 7′ x 30′ lean too

• 7′ x 32′ lean too

• 7′ x 36′ lean too

• 7′ x 40′ lean too

• We can build horse barns and run in sheds in sizes that are 10', 12', and 14', wide and up to 40' in length.

• We also have 22 different colors of metal you can choose from. See color chart in with pictures above.



How to Order with Wabash Valley Enterprises Directly:

1. You can order this building by calling and actually talking to a salesperson at Wabash Valley Enterprises. Call our sales office at 888-568-2035 M-F from 8-4 eastern time.
